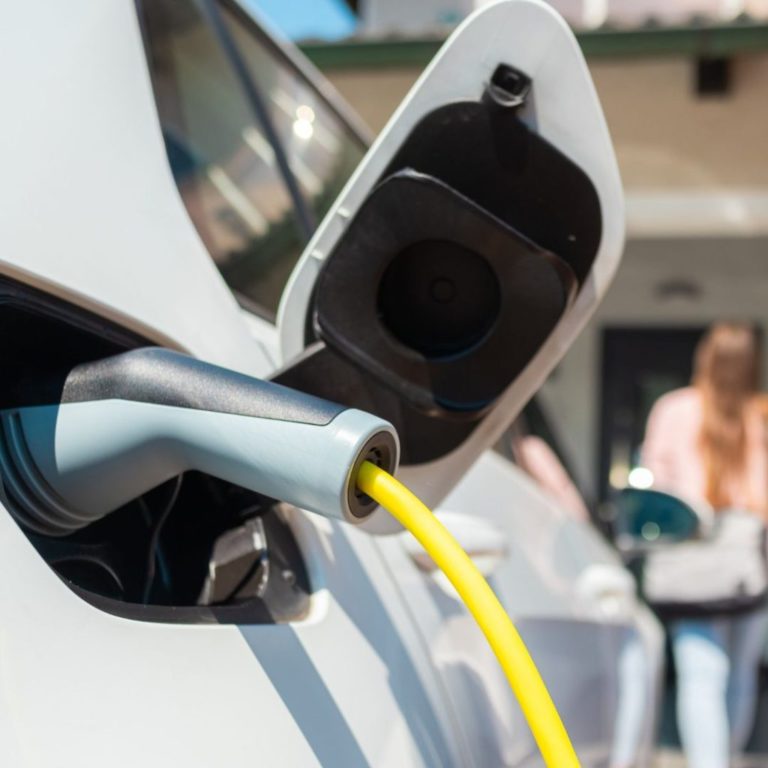

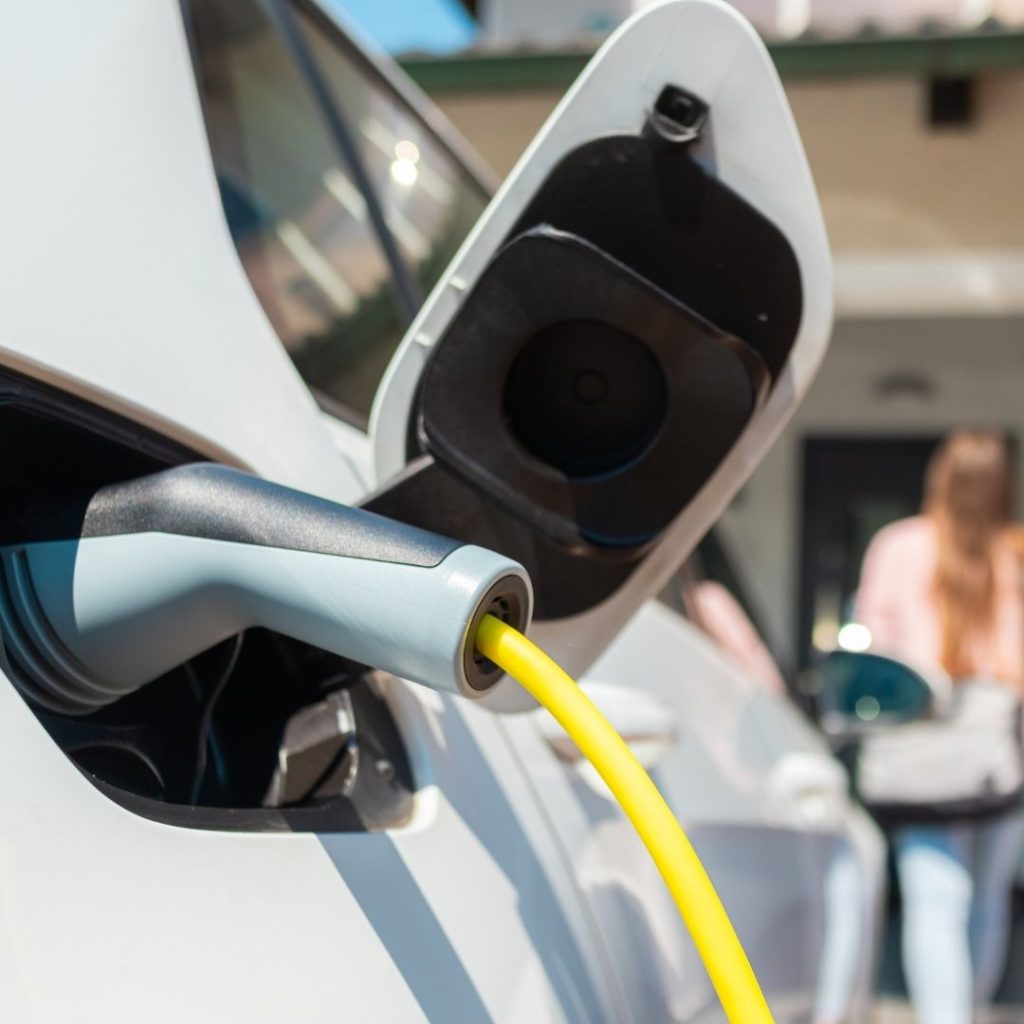

Home EV Charger Installation: Is a Switchboard Upgrade Necessary?

Understanding the Importance of Upgrading Your Switchboard for a Safe EV Charger Installation

Absolutely! In numerous households throughout Melbourne, the process of installing an EV charger frequently requires a comprehensive switchboard upgrade. Many older switchboards do not provide the necessary load capacity, adequate RCD protection, or sufficient circuit space that are critical for the safe and compliant installation of an electric vehicle charger. Engaging a licensed electrician to conduct a thorough inspection and upgrade your switchboard is imperative. This ensures that your home can effectively support the charging of your EV, mitigating any risks or complications associated with electrical systems.

As the demand for electric vehicles continues to surge in Melbourne, an increasing number of homeowners are opting to install EV chargers in their garages or driveways. However, many individuals overlook the fact that proper preparation of your home’s electrical system is essential, beginning with a comprehensive evaluation of your switchboard. It is vital to ensure that your electrical infrastructure can accommodate the demands of an EV charger, which is crucial for both safety and efficiency. This not only optimises charging speed but also protects your property from potential electrical hazards.

At Direct Point Electrical, we have completed numerous successful installations of EV chargers across Berwick, Narre Warren, and Cranbourne in Melbourne’s outer eastern suburbs. In nearly all cases, the switchboard is the first component we assess to verify compliance with all necessary standards for safe and effective charging. Our extensive expertise ensures that every installation meets local regulations while providing optimal performance tailored specifically to your needs.

Why Installing a Dedicated Circuit for EV Chargers is Essential Over a Standard Power Point

EV chargers are fundamentally different from typical household appliances like your toaster or washing machine. Most residential charging units, especially the 7kW and 22kW models, necessitate:

• A dedicated circuit specifically designed to manage the electrical load more efficiently
• RCD protection as mandated by AS/NZS 3000 standards to ensure enhanced safety
• Ample amp capacity, typically between 32A and 50A, to effectively accommodate high power demands
• Effective load balancing to prevent the risk of overloading existing circuits in your home

Consequently, connecting an EV charger to an outdated fuse box or an overloaded switchboard is not just imprudent; it introduces significant safety hazards and fails to comply with current regulations. For more comprehensive insights regarding the requirements for EV chargers in residential settings,

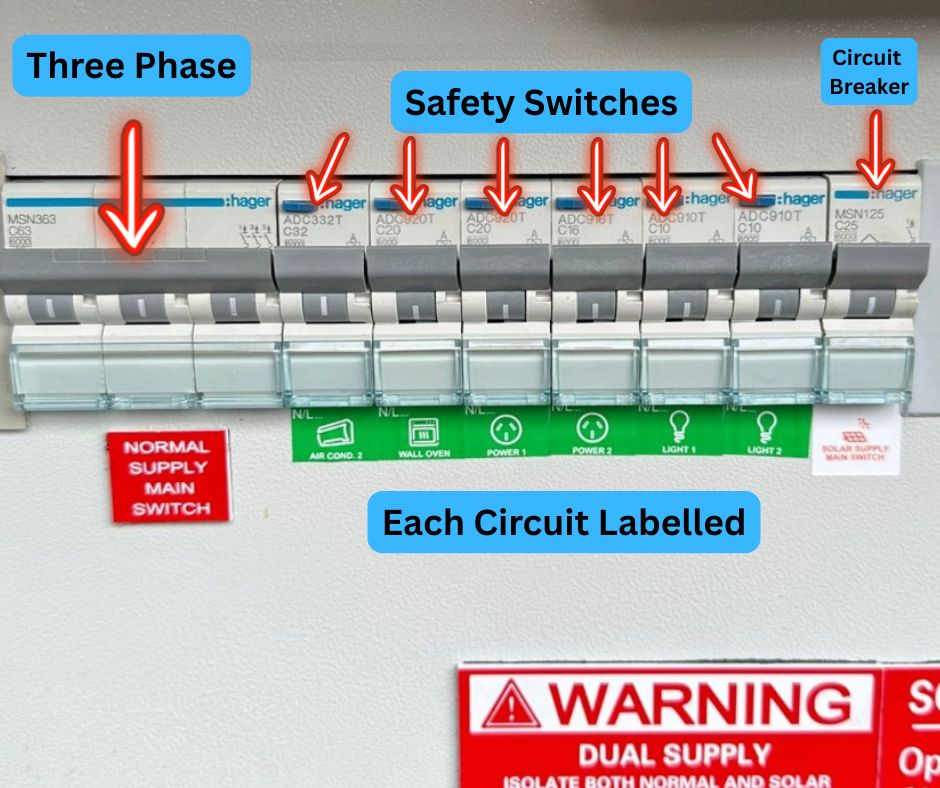

Identifying Whether Your Switchboard Needs an Upgrade: Key Indicators

If your home was built more than twenty years ago, it is very likely that your switchboard lacks the required capacity to adequately support an EV charger. Here are some critical indicators we thoroughly investigate during our assessments:

• Old ceramic fuses or asbestos backing, both of which are outdated and pose health risks
• Absence of RCD or safety switch protection, which is crucial for preventing electrical accidents and ensuring safety
• Limited circuit space that does not allow for the installation of a new dedicated circuit
• Signs of burn marks, buzzing noises, or frequent tripping when using electrical appliances
• Lack of a 3-phase supply if you aim to install a faster 22kW charger

Any of these warning signs indicate potential risks to both safety and EV compatibility in your home. They should be addressed promptly to ensure a secure electrical environment.

Note: The Electric Vehicle Council recommends that a dedicated circuit be installed for your EV. This precautionary measure helps prevent the overloading of existing circuits in your residence. When establishing a dedicated circuit, opting for a 15amp outlet and charger instead of the standard 10amp circuit can significantly enhance your charging rate by 50% and reduce charging times by one-third.

Step-by-Step Process for Upgrading Your Switchboard

At Direct Point Electrical, we aim to make the switchboard upgrade process as straightforward and stress-free as possible for our clients:

1. Site Assessment – We conduct a meticulous inspection of your existing switchboard, wiring, and main power supply.
2. Load Calculation – We assess whether your residence can efficiently manage the additional load generated by the EV charger.
3. Upgrade Planning – If an upgrade is deemed necessary, we provide a comprehensive quote for a new compliant switchboard featuring RCDs, surge protection, and adequate space for the EV charger.
4. Documentation & Compliance – We handle all necessary paperwork with your energy distributor (AusNet or United Energy) and issue a Certificate of Electrical Safety upon completion of the work.

Depending on the current condition and configuration of your existing switchboard, most upgrades can be completed within a single day, allowing you to quickly enjoy the convenience of charging your EV at home.

Understanding Electrical Compliance Requirements in Victoria for EV Charger Installation

All electrical work conducted in Victoria must comply with the AS/NZS 3000 Wiring Rules, which govern the installation of EV chargers. A licensed electrician is required to:

• Implement RCD protection for the circuit being utilised
• Ensure that the load from the charger does not exceed the main switch capacity
• Submit all necessary forms to your energy distributor
• Provide a Certificate of Electrical Safety upon completion of the project

Attempting any DIY or unlicensed installations not only contravenes regulations; it also voids warranties and poses significant fire hazards or potential denial of insurance claims.

Essential Steps for Homes with Existing Solar Panels or Battery Systems

This is excellent news! However, it remains critical to assess how the EV charger will interact with your existing solar energy system. Balancing the load between solar energy, battery storage, and EV charging requires meticulous planning to ensure efficient energy use.

We will work closely with you to:

• Schedule charging times to optimise the utilisation of solar energy
• Ensure that your inverter and battery configuration can effectively accommodate the energy draw
• Recommend suitable charger models that feature smart load management capabilities

Evaluating the Need for a 3-Phase Power Supply Upgrade for Efficient EV Charging

Not necessarily. A 7kW charger operates effectively on single-phase power for most users. However, if you:

• Desire faster charging times
• Own two electric vehicles
• Or frequently use high-load appliances simultaneously

… then considering a 3-phase upgrade could be beneficial. We can offer expert advice on this during your initial inspection to determine the best course of action tailored to your needs.

Key Considerations for Installing an Efficient EV Charger at Home

If you are contemplating the installation of an EV charger at your residence, prioritising your switchboard is essential. At Direct Point Electrical, we provide free site inspections, transparent pricing, and a seamless process to ensure safe, efficient, and future-proof EV charging solutions customised to your home’s specific requirements.

Whether you reside in Berwick, Narre Warren, or any area in Melbourne’s outer east, we have the ideal EV charging solution to meet your unique needs, ensuring that you can fully enjoy the benefits of electric vehicle ownership without any electrical concerns.
